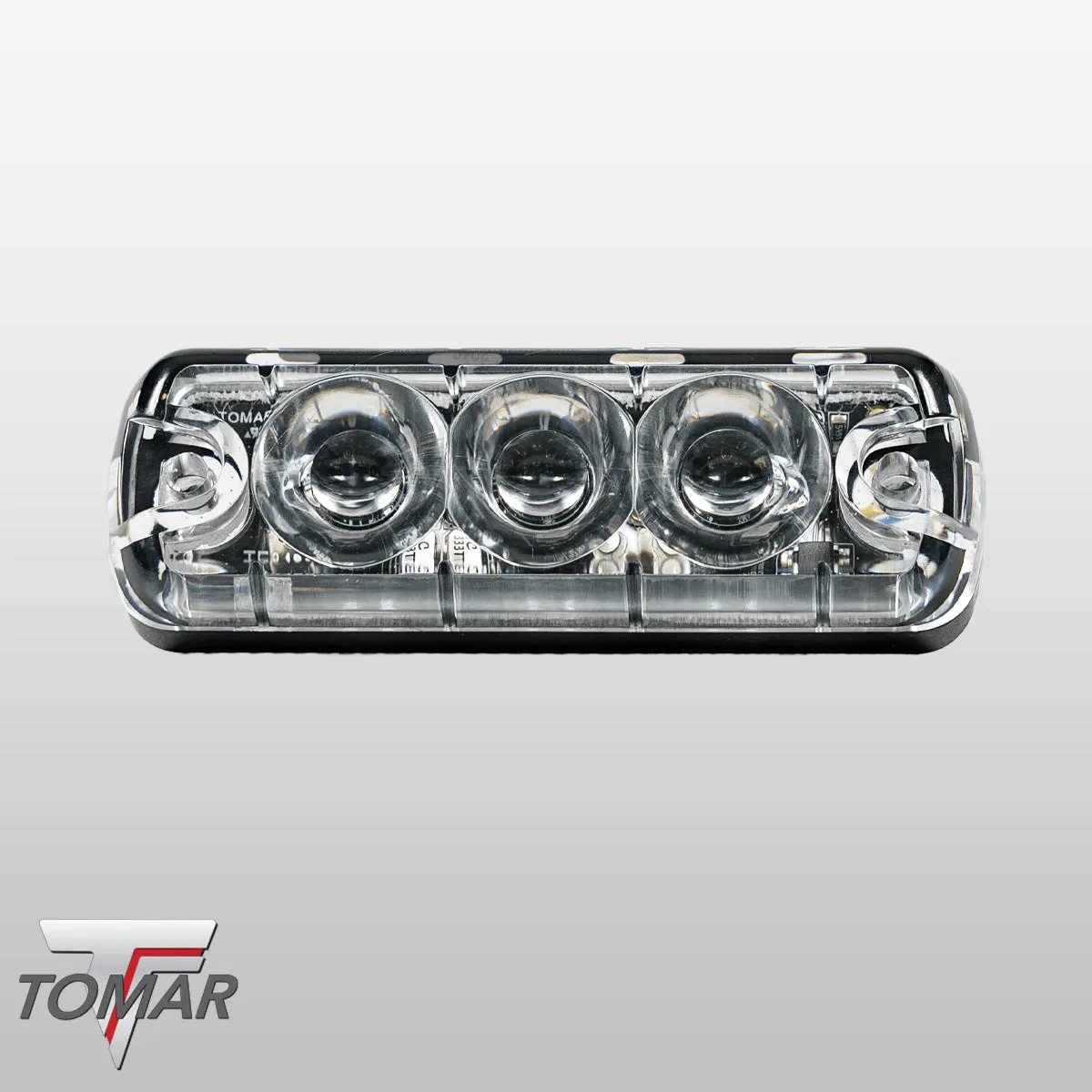

TOMAR’s RECT-13 is a mini, ultra high-intensity, LED warning light with huge punch. Made of optical Lexan and hermetically sealed, this one piece, fit anywhere design makes installation a breeze. At only 3.3″ x 1.2″ x .75″ the RECT-13LS is one of the smallest warning lights on the market to meet SAE J845, SAE J595.
The RECT-13LS’s compact size makes it the perfect auxiliary light for all the hard to fit locations. Mount directly to the body, the rear view mirror, grille or the license plate. A complete line of brackets means you can mount this light practically anywhere.
NOTE:
Our RECT Series LED lights do not not include a mounting bracket you must either source your own or use one of our.
KEY FEATURES:
- 3 ultra-high intensity LEDs
- Trusted by first responders the RECT series lights were originally developed for firefighters, police, and EMS vehicles.
- TOMAR-Patented Linear-Vibration Weld Seal rated IP69 waterproof and dust-proof.
- Two independent trigger wires for two programmable modes (e.g. steady-on and flashing).
- Includes a sync wire for a clean, synchronized look.
- Each light is available in a single color (amber, blue, red, green, white/clear)
NOTE: The light color that is selected is the light color for that specific LED light - SAE J845 and SAE J595 compliant
- Full array of mounting bracket options
- Five Year warranty
RECT 13 SPECS

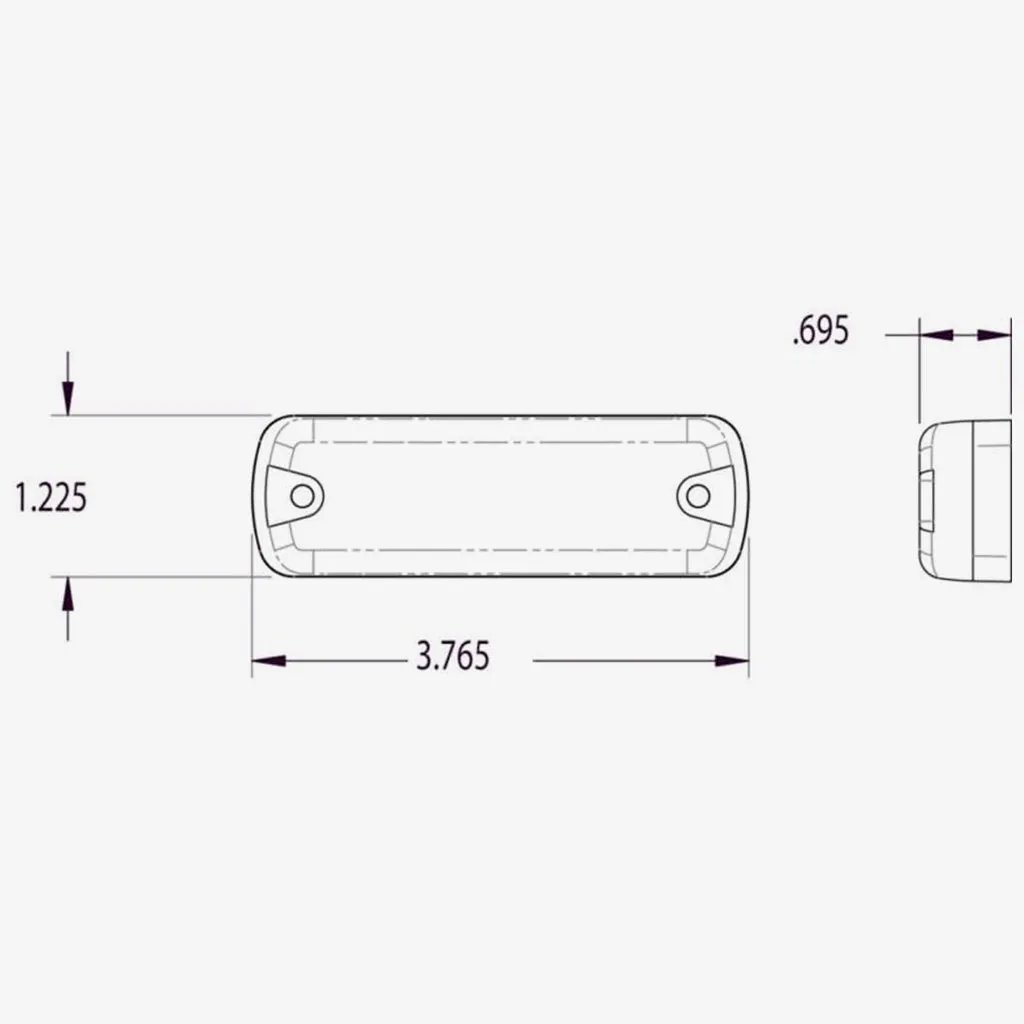

- Size: 3.75″ Wide x 1.2″ High x .70″ Deep
- LED Color Choices: Amber, Blue, Green, Red, White
- Current Draw: .45 Amp avg.
- Input Voltage: 12/24 VDC.
- Operating Temperature Range: -55°C to 65°C
RECT Series beam-angles for meeting SAE J595/J845 Standards:
- Class 1: /- 40 degrees
- Class 2: /- 60 degrees
- Class 3: /- 75 degrees
Wiring Details
- Red: Connect to Battery 12Vdc thru 24Vdc to activate
- Black: Connect to Battery GROUND
- Yellow: Sync Line
- Blue: Alternate Flash Pattern
NFPA 1900 Cumulative Lamp Totals Candela Seconds per Minute
| Model | Single | Double | Neobe |
|---|---|---|---|
| RECT-13LS-A | 64,404 | 32,202 | 45,083 |
| RECT-13LS-B | 36,952 | 26,934 | 57,788 |
| RECT-13LS-R | 70,787 | 50,562 | 101,124 |
| RECT-13LS-W | 99,017 | 70,727 | 141,453 |
