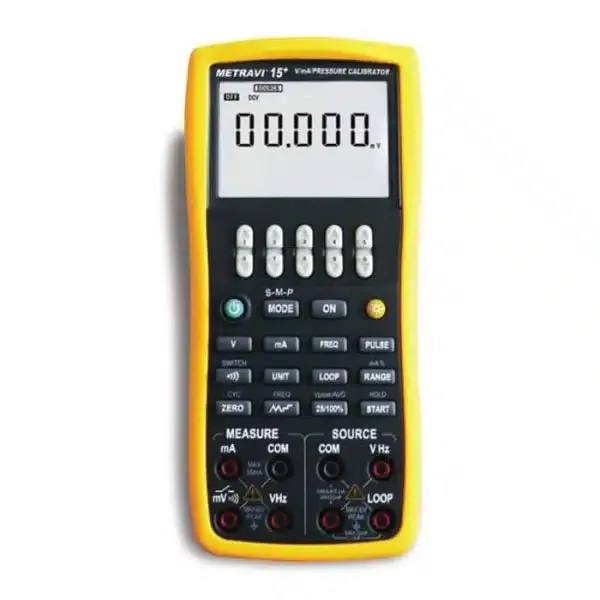

The Metravi 15 mV/mA Loop Calibrator is a versatile and highly accurate tool designed for precise field calibration tasks. With the ability to measure and output DC voltage, current, and loop current, it ensures accurate readings with a high precision of 0.05%. It is ideal for calibrating analogue transducers and providing loop power, making it indispensable for technicians in process industries. The backlit LCD display ensures clear visibility, while the auto power-off function helps save battery life during operations.

Key Features

• Dual Functionality: Capable of providing voltage and current outputs as well as measuring DC voltage, current, and loop current.
• High Precision: Offers high accuracy of ±0.02% for both DC voltage and current measurements, ensuring reliable calibration.
• Versatile Range:
  • Voltage Output: 0 – 200mV to 50V
  • Current Output: 0 – 50mA
  • Frequency Output: 0 – 10kHz
• User-Friendly Display: Equipped with a 6-digit backlit LCD for easy reading in various lighting conditions.
• Auto Power Off: Features an auto power-off function to conserve battery life, with the option to disable when required.
• Pulse Generation: Supports pulse range of 1 to 100,000 cycles, making it ideal for dynamic testing.
• Portable Design: Compact and rugged build with a yellow-black casing, perfect for fieldwork.

Specifications

• Model: 15
• Voltage Range: Measure 0 – 200mV to 50V, Source 0 – 10V
• Resolution: 0.1mV for voltage, 1µA for current, 0.01Hz for frequency
• Accuracy: ±0.02% for voltage and current, ±2% for frequency
• Frequency Range: Measure 0 – 50kHz, Source 0 – 10kHz
• Pulse Output: 0 – 10kHz, 1 to 100,000 cycles
• Loop Current: 0 to 24V with ±10% accuracy
• Display: Backlit LCD for clear readings
• Power Source: Battery-operated
• Dimensions: Compact and portable for ease of use in fieldwork.

Box Including

• Metravi 15 mV/mA Loop Calibrator
• Test Leads
• User Manual
• Protective Carrying Case

Applications

• Process Industry: Calibration of analog transducers and loop current devices.
• Field Calibration: Ideal for technicians needing precise measurements of voltage, current, and frequency in various environments.
• Maintenance & Testing: Perfect for testing and maintaining industrial equipment, sensors, and control systems.
• Research & Development: Suitable for labs requiring a reliable and accurate calibration tool for electronic experiments and testing.
