DVDO-HDBVM-POE-1 is a 4K HDBaseT 2.0 extender that transmits HDMI, analog stereo audio, power, RS232 and USB 2.0 up to 70m/230ft using a single Cat X cable.
With USB 2.0 pass-through and USB Host in TX, USB Devices in RX, it provides solutions where remote users want to control PC sources with keyboard and mouse, interactive display operation, data transmission or USB streaming device over distance is required. Additional features include bi-directional 3.5mm stereo pass-through.

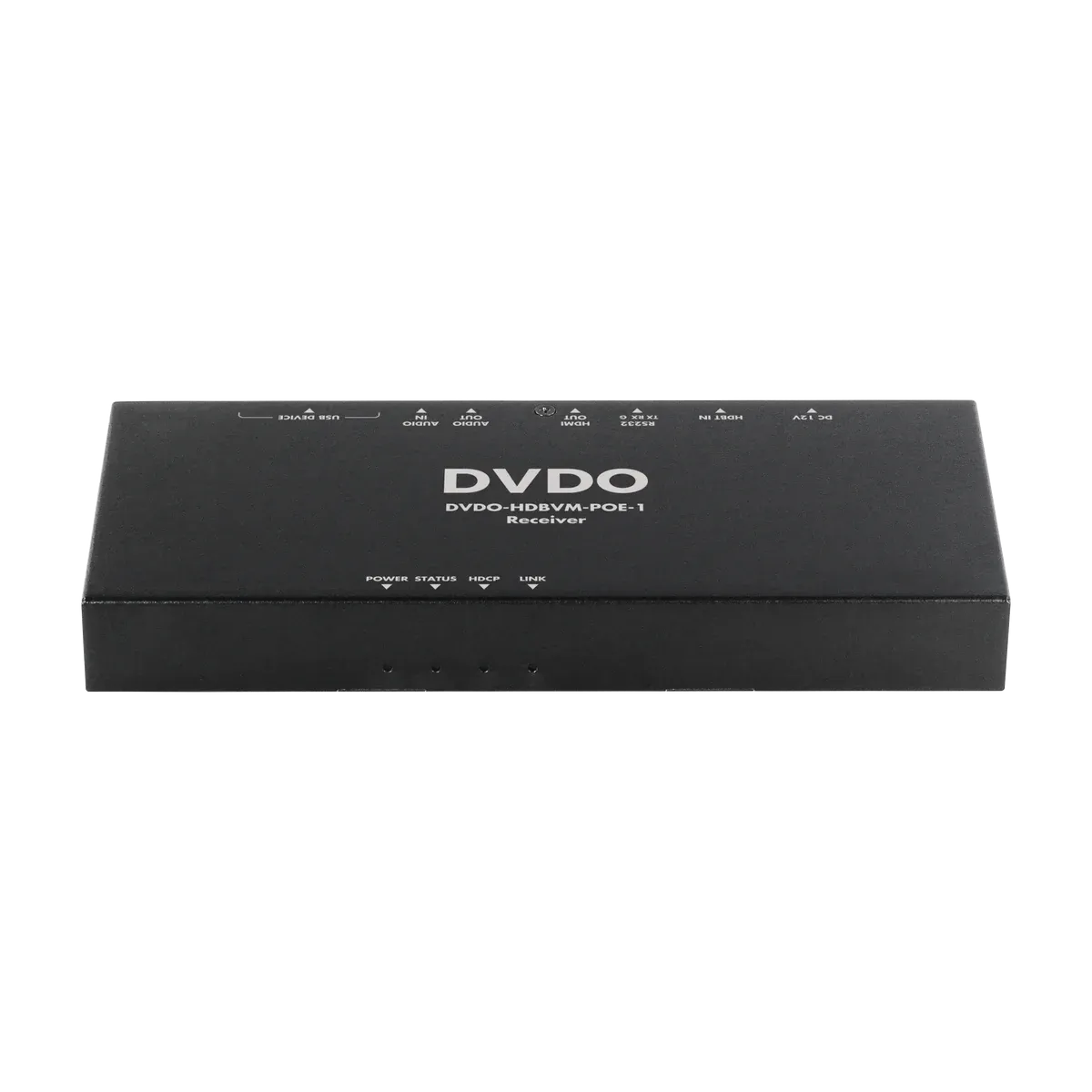

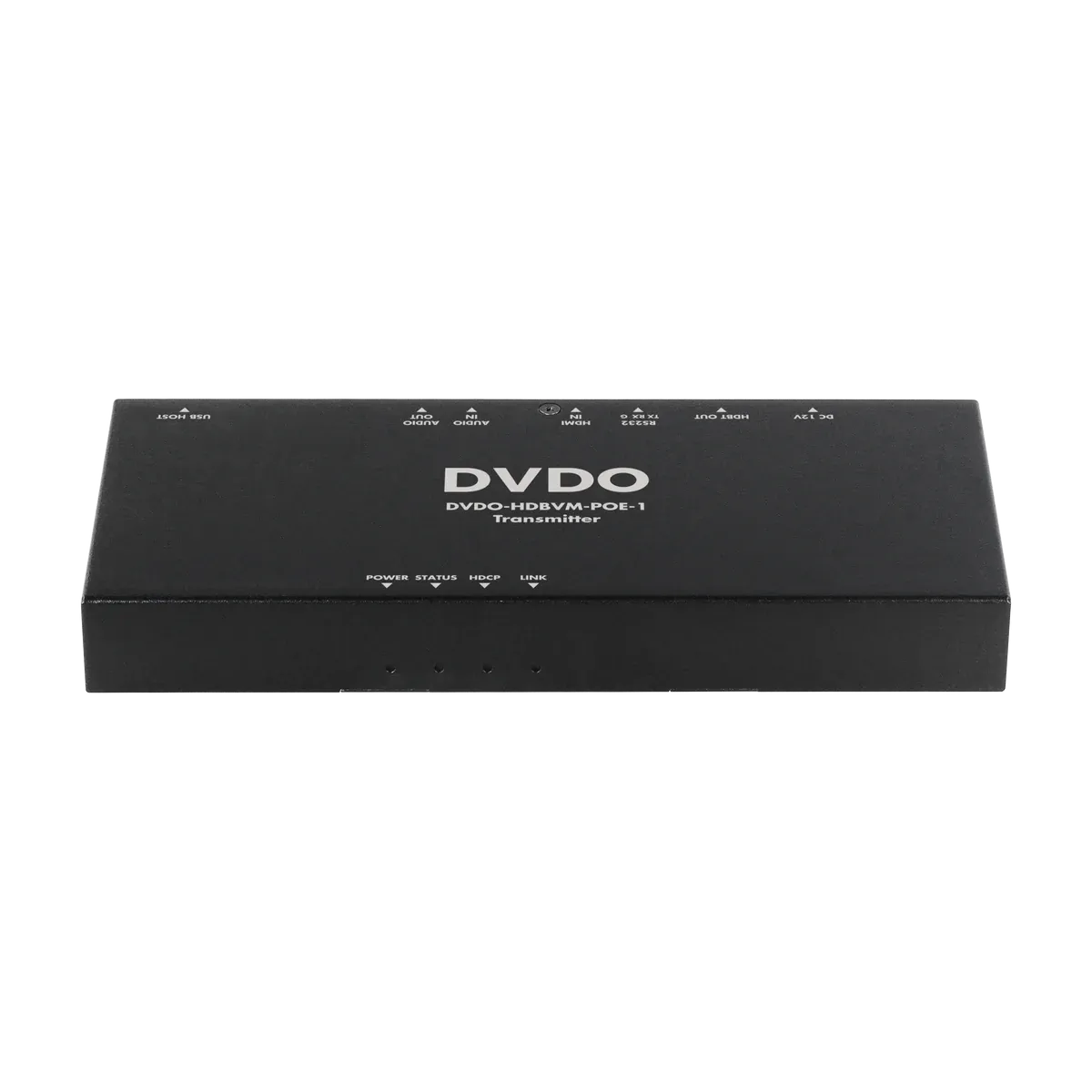

With 48V PoH integrated inside, it just needs one power supply connected to TX to power both units. Its 12V power supply is secured with a screw-on connector to prevent the power being accidentally disconnected, with LED indication for visual power supply to units and signal status to show established connection between connected devices.
Specifications
- Via a Cat 6a/7 cable, transmits 4K@60Hz (YUV 4:2:0 color sub-sampling) up to 40m/131ft and 1080P@60Hz signal up to 70m/230ft.
- Via a Cat 5e/6 cable, transmits 4K@60Hz (YUV 4:2:0 color sub-sampling) signal up to 35m/115ft and 1080P@60Hz signal up to 60m/197ft.
- HDMI 1.4 with 4K@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDCP 2.2 compliant.
- One-way POH, TX (PSE) with PSU to power both TX and RX (PD).

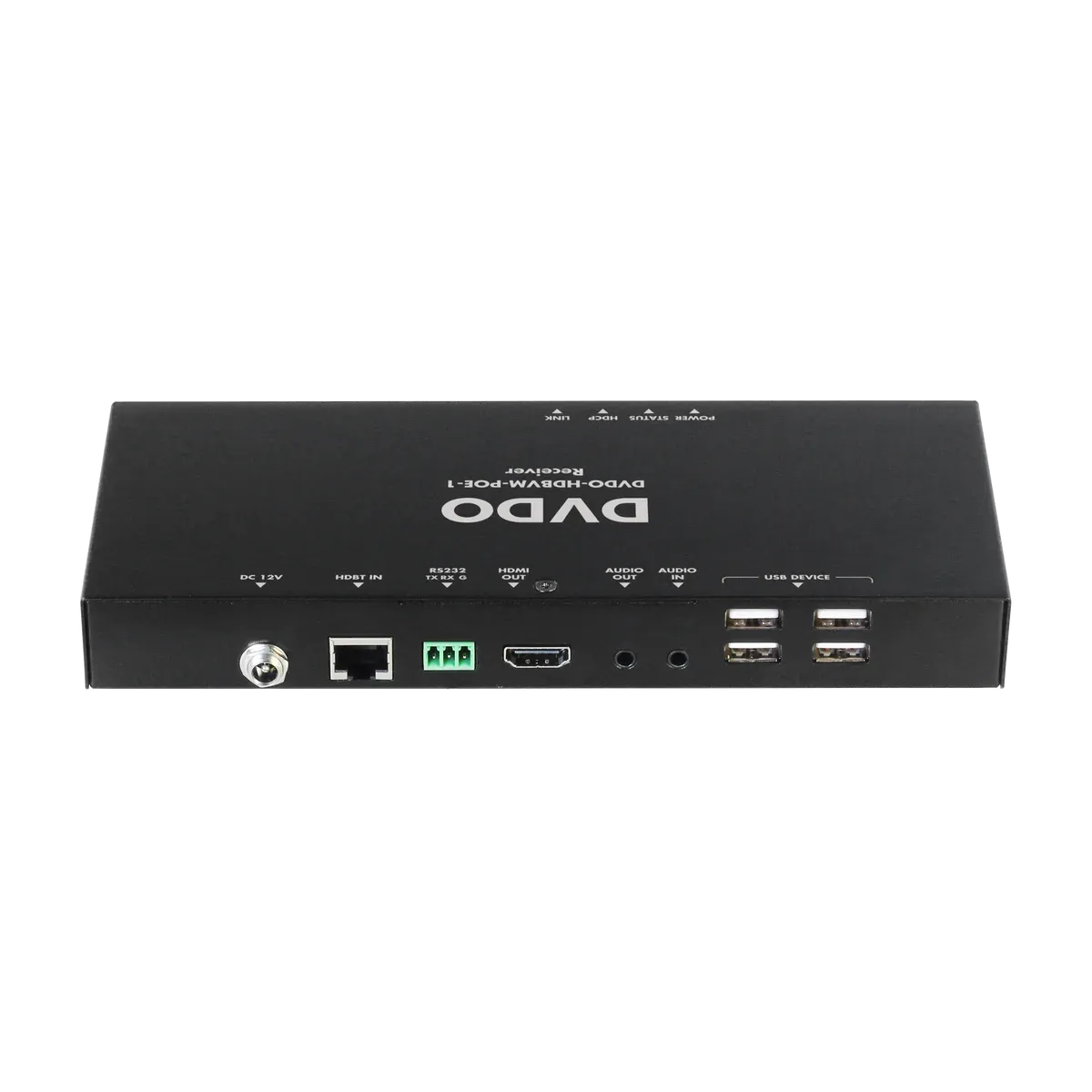

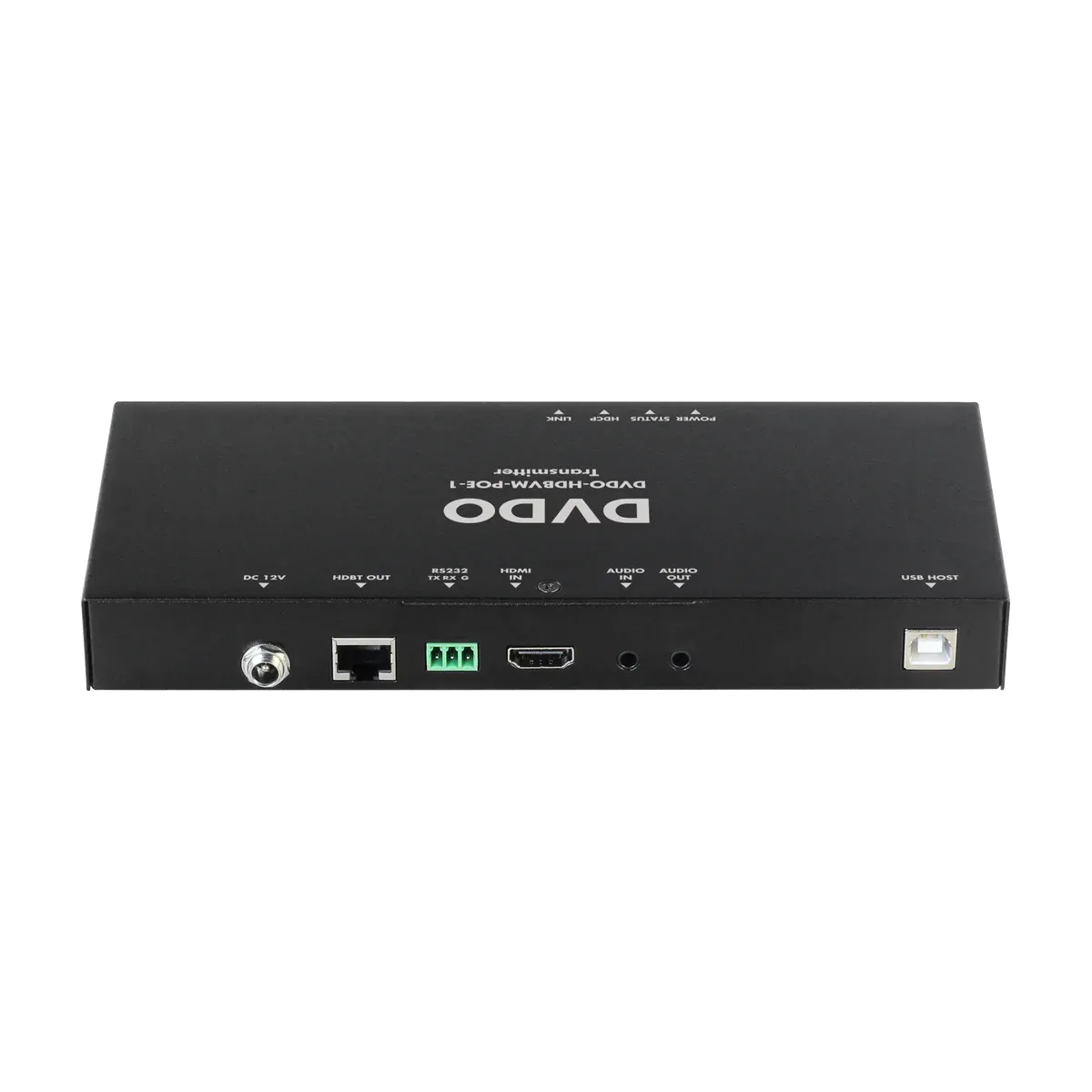

- USB 2.0 pass-through, one USB Host built in TX and four USB Devices built in RX.
- High-speed USB 2.0 pass-through over HDBaseT up to 70m/230ft
- Bi-directional analog stereo audio, CEC pass-through and RS232 pass-through over HDBaseT.
