Product Details
＋
Camera Spec
| Effective sensor size | 36mm x 24mm (full frame) |
| Lens mount | Active L-mount |
| Lens Control | Iris and focus (with compatible lenses) |
| Dynamic Range | 13 stops |
| Dual Native ISO | 400 and 3200 |
| Shooting Resolution | 6048 x 4032 (Open Gate 3:2) up to 36 fps, |
| 4832 x 4032 (Anamorphic 6:5) up to 36 fps, | |
| 6048 x 3200 (6K DCI 17:9) up to 48 fps, | |
| 6048 x 2520 (6K 2.4:1) up to 60fps, | |
| 4096 x 3072 (Super 35 4:3) up to 50 fps, | |
| 4096 x 2160 (4K DCI 17:9) up to 60 fps, | |
| 2112 x 1184 (Super 16 16:9) up to 100 fps, | |
| 1920 x 1080 (1080 HD 16:9) up to 120 fps, | |
| Frame Rate | Maximum sensor frame rate depends on resolution and codec selected; supports project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps. |
| Off-speed frame rates of up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9, and 120 fps in 1080 HD. | |
| Focus | Autofocus available with compatible lenses |
| Iris Control | Manual iris adjustment for lenses electronically controllable with iris wheel and touchscreen slider. Auto iris setting on compatible lenses with iris button. |

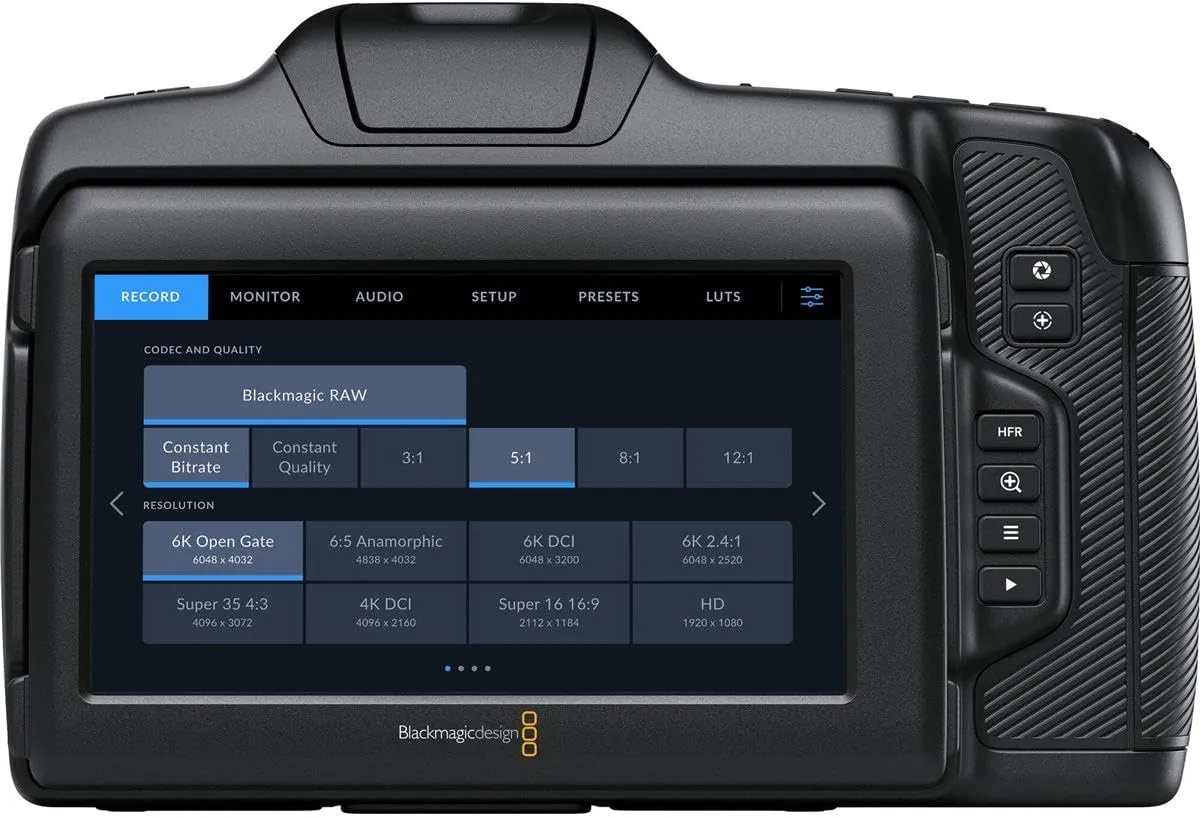

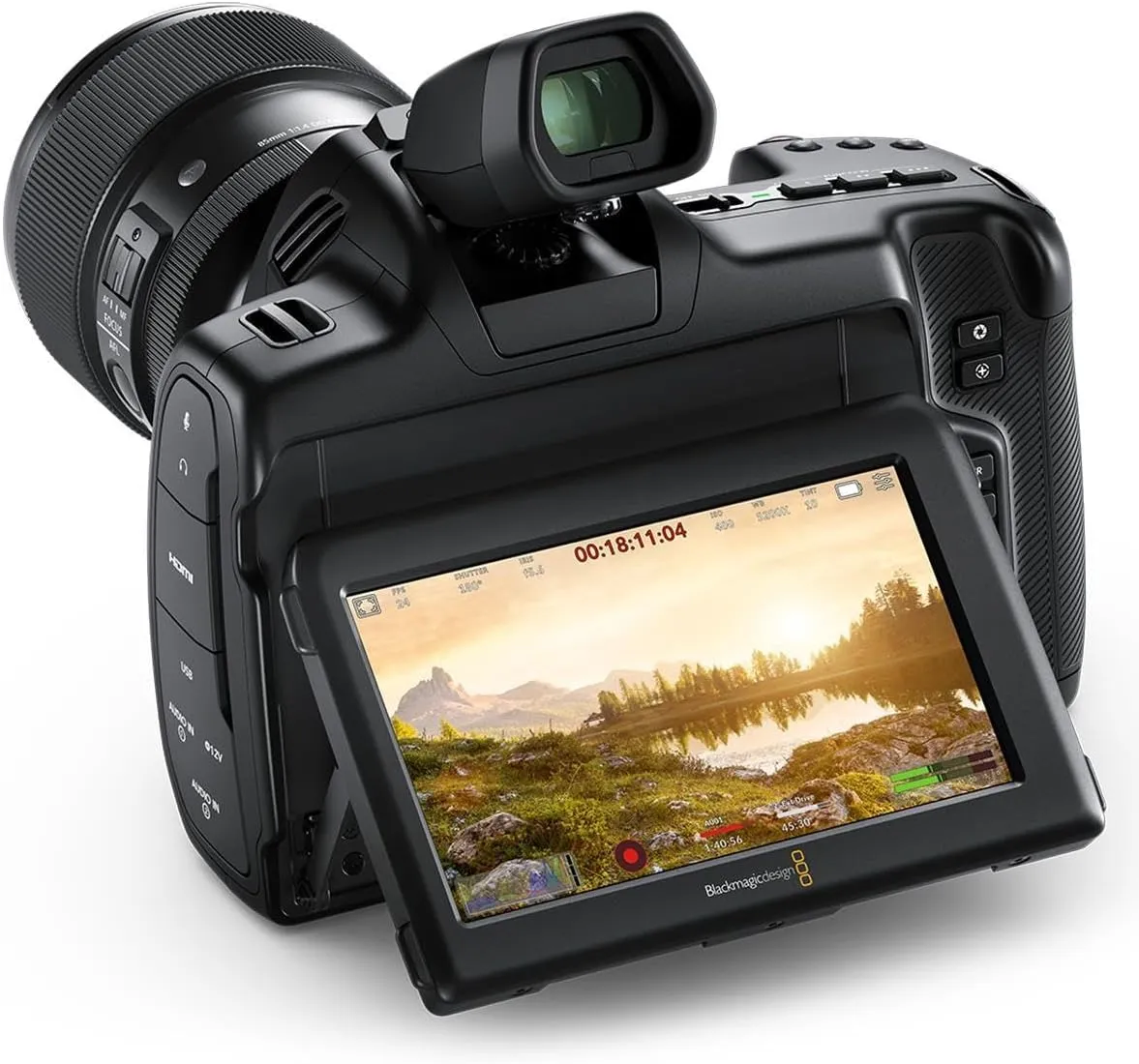

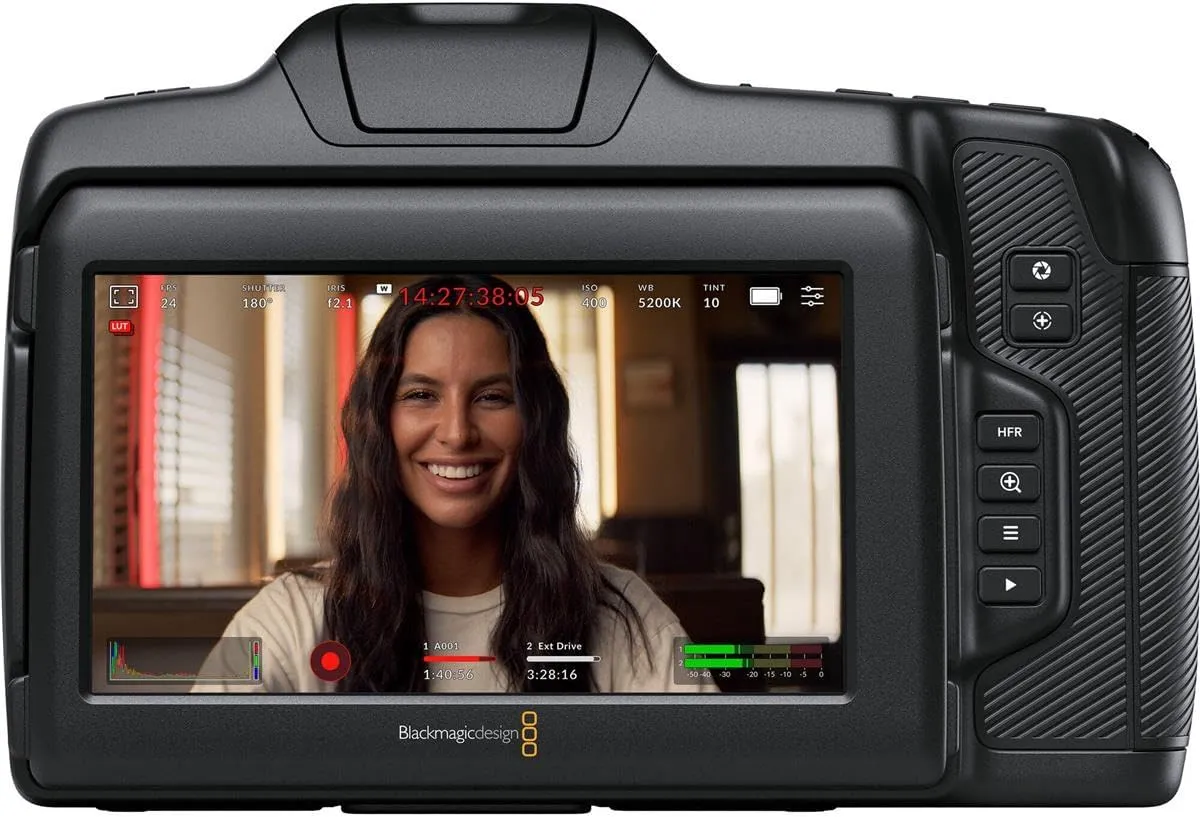

| Screen Size | 5” 1920 x 1080. |
| Screen Brightness | 1500 nits |
| Screen Type | Capacitive LCD touchscreen |
| Metadata Support | Automatic addition of lens data from L-mount electronic lenses. Automatic recording of camera settings and slate data (project, scene number, take, notes, etc.); 3D LUTs can also be embedded in Blackmagic RAW file metadata. |
| Controls | 5” screen touch screen menu. 1 power switch, 1 record button, 1 still button, 1 pushable scroll wheel on hand grip, 1 ISO button, 1 white balance, 1 shutter button, 3 software configurable Fn buttons, 1 focus button, 1 iris button, 1 high frame rate (HFR) button, 1 zoom button, 1 menu button, 1 playback button. |
| Time Code Clock | High-precision timecode clock; less than 1 frame error every 8 hours |
| Screen Brightness | 1500 nits |
| Screen Type | Capacitive LCD touch screen |
| Metadata Support | Lens data automatically added from L-mount electronic lenses. Automatic recording of camera settings and slate data (project, scene number, take, notes, etc.); 3D LUTs can also be embedded in Blackmagic RAW file metadata |
| Controls | 5” screen touch screen menu. 1 power switch, 1 record button, 1 still button, 1 pushable scroll wheel on hand grip, 1 ISO button, 1 white balance, 1 shutter button, 3 software configurable Fn buttons, 1 focus button, 1 iris button, 1 high frame rate (HFR) button, 1 zoom button, 1 menu button, 1 playback button. |
| Time Code Clock | High-precision timecode clock; less than 1 frame error every 8 hour |

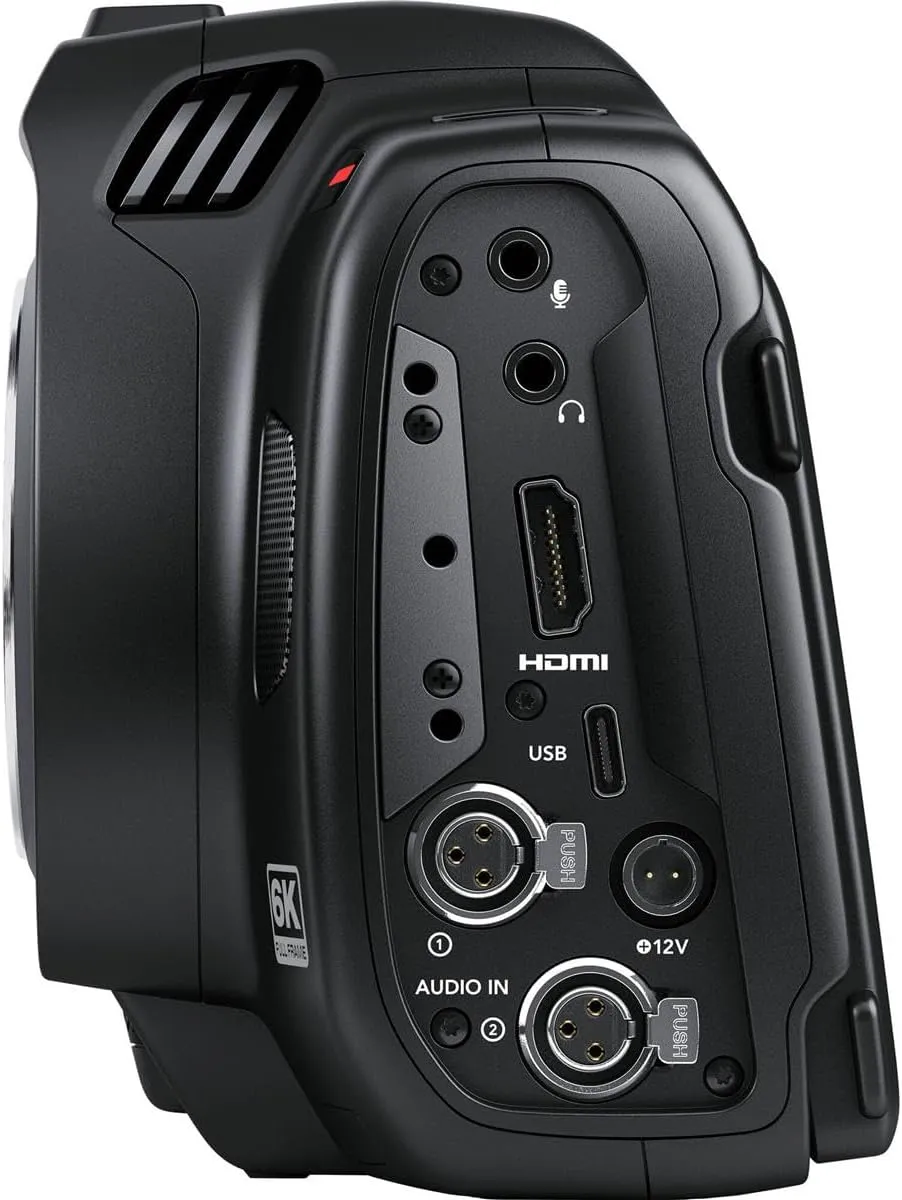

Connections
| Video Input Total | Not supported |
| Total Video Output | HDMI (up to 1080p60) x1 |
| Analog Audio Input | 2 mini-XLR analog x2 (switchable with Mic and Line up to 14dBu with phantom power support), 1 x 3.5mm stereo input, |
| All audio inputs can be used for timecode input. | |
| Analog Audio Output | 1 x 3.5mm headphone jack |
| Computer Interface | USB Type C (for recording to external drive, PTP camera control, software updates) |
| Included | Lens turret cap to protect from dust |
| Camera strap | |
| Battery charger | |
| NP-F570 battery | |
| DaVinci Resolve Studio activation key |
| Product name | Blackmagic Cinema Camera 6K [Cinema Camera L-mount] |
| Model Number | CINECAM60KLFL |
Product Overview

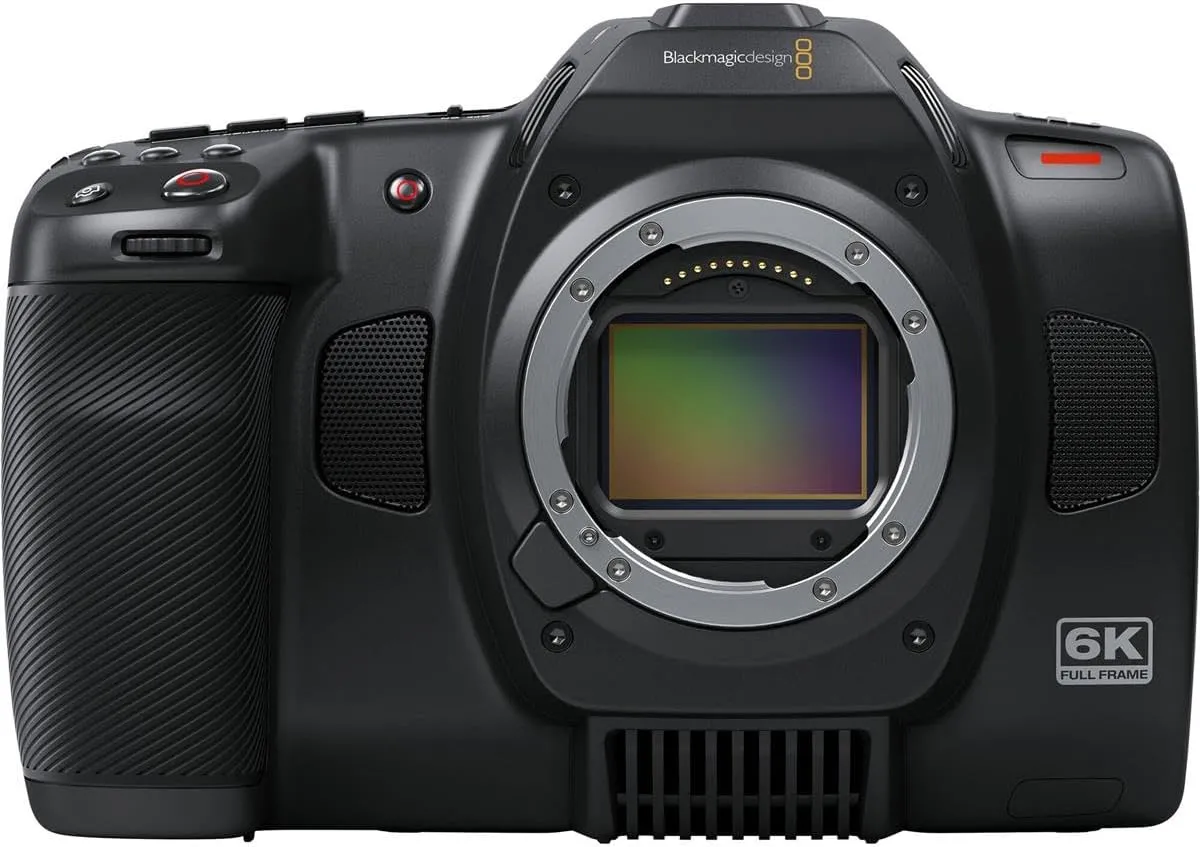

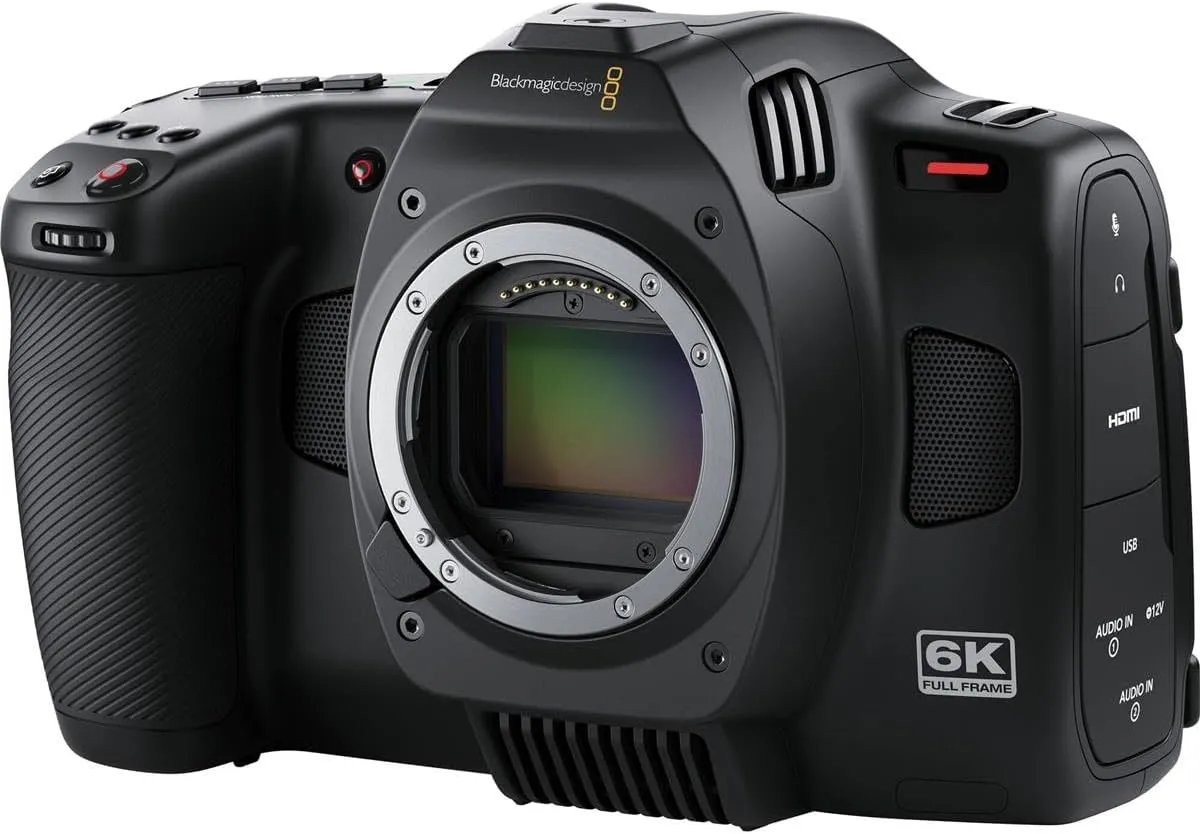

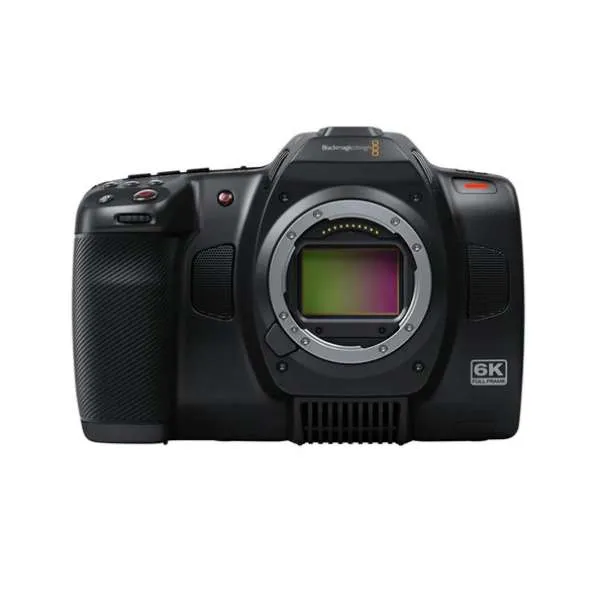

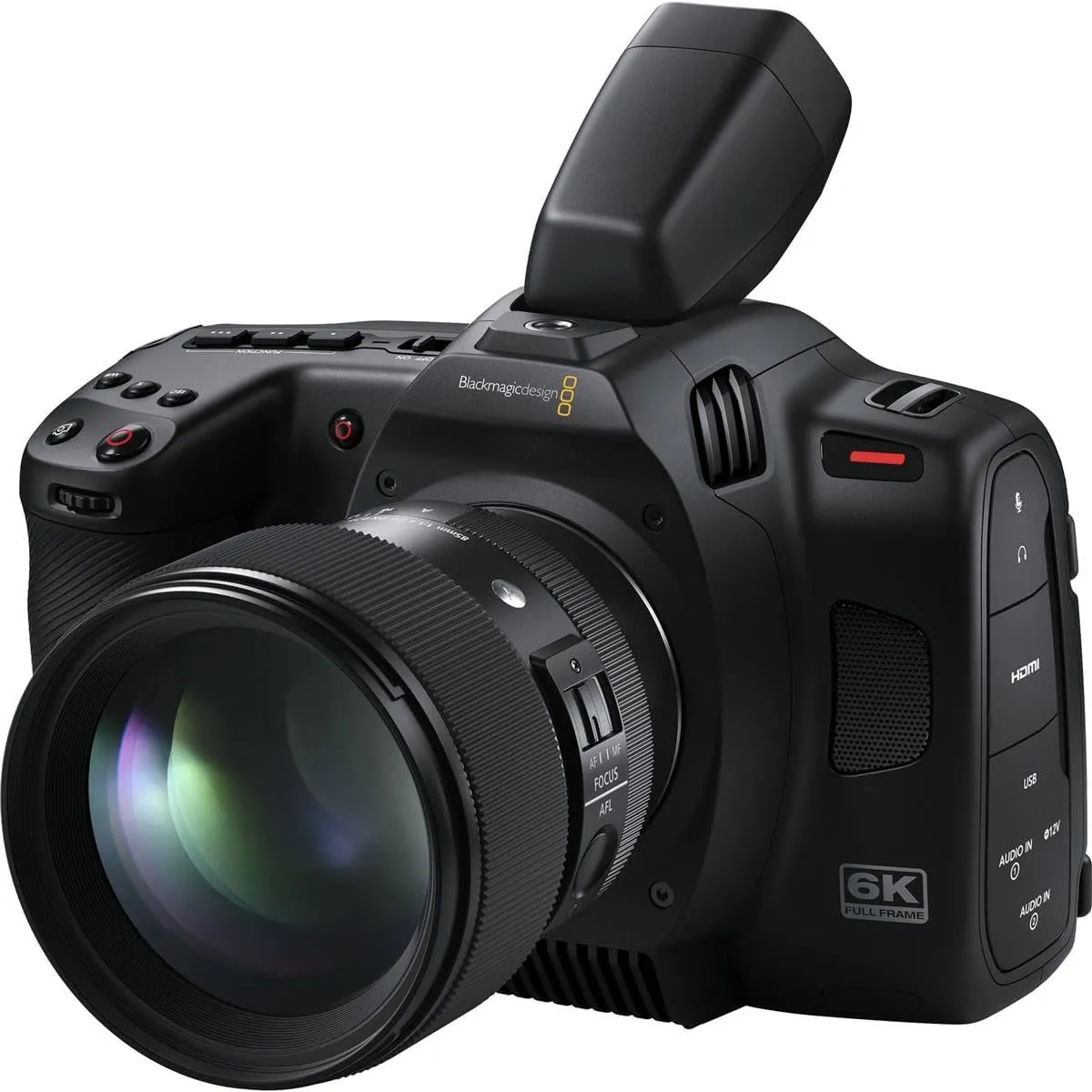

The Blackmagic Cinema Camera 6K is a next-generation handheld 6K digital film camera with a high-resolution 6048 x 4032 full frame HDR sensor, dual native ISO, L-mount, CFexpress recording, and direct recording to USB-C disk. It features an OLPF for superior detail processing, beautiful cinemalike images can be recorded in 12-bit Blackmagic RAW, and supports real-time H.264 proxying.
